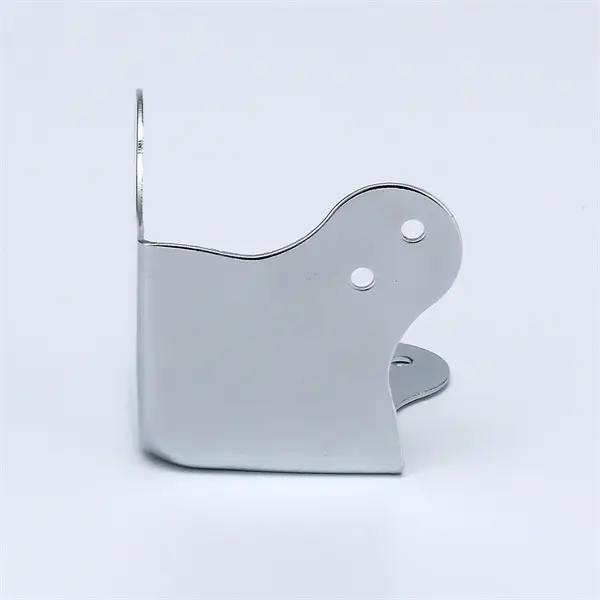

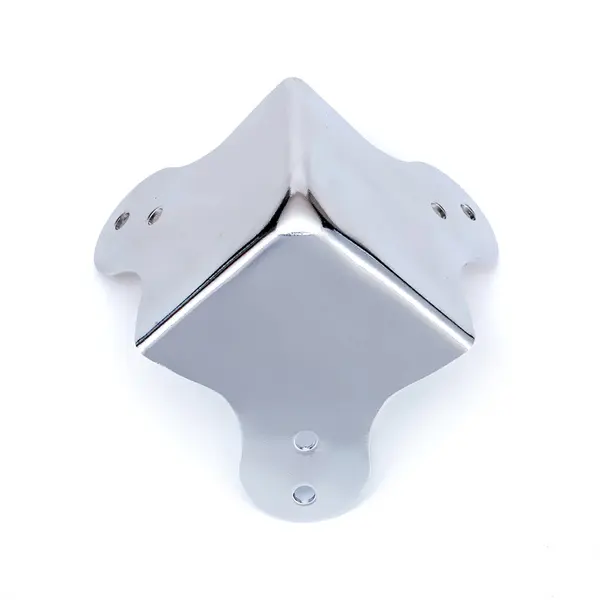

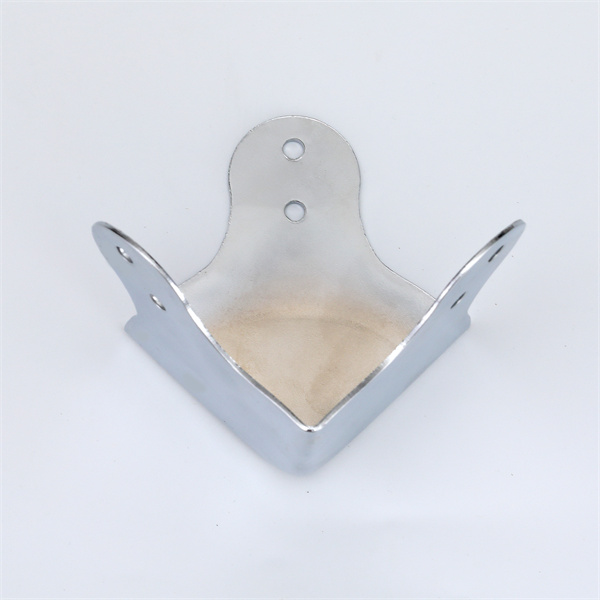

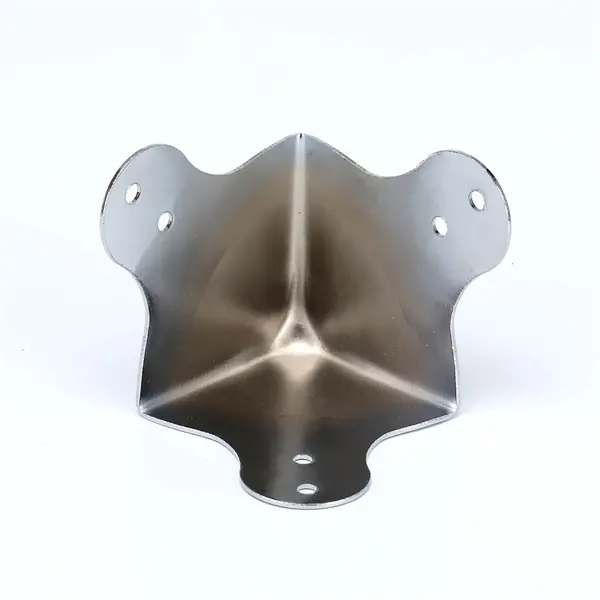

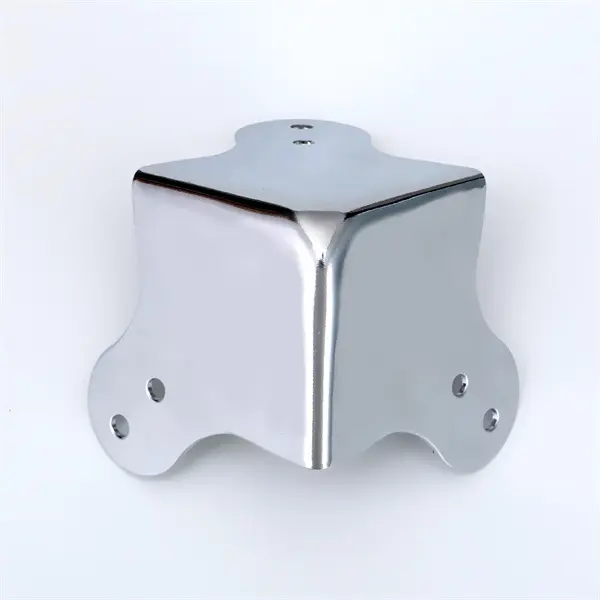

Large Flat Corner

  • Item number MC358
  • Product type 3 legs flat corner for case
  • Materials Option Mild Steel/Stainless steel 304
  • Surface Treatment Chrome/Nickel/Zinc/Blue bronze/Golden
  • Net Weight Around 67 gram
Send mailWhatsapp INQUIRY NOW

MC358

Product Description

cc


Solution

a1
a2
a3

PRODUCTION PROCESS

Material1al
01

Material

2018-07-16
During the period of 51-55, the third phase of medicine and health ...
view detail
Cutting2fm
02

Cutting

2018-07-16
During the period of 51-55, the third phase of medicine and health ...
view detail
Stampingqo9
03

Stamping

2018-07-16
During the period of 51-55, the third phase of medicine and health ...
view detail
Shapingm6r
04

Shaping

2018-07-16
During the period of 51-55, the third phase of medicine and health ...
view detail
Electric platingbzd
04

Electric plating

2018-07-16
During the period of 51-55, the third phase of medicine and health ...
view detail
Assemblingvrx
05

Assembling

2018-07-16
During the period of 51-55, the third phase of medicine and health ...
view detail

quality control

Quality inspection (1)wwu
01

Inspection for raw materials

2018-07-16
With nectar and honey pouch Although I didn't bring a honey jar But there is a honey pouch in the belly of the bee Is specially used to hold nectar
view detail
Quality inspection (2)0sj
01

finished product inspection

2018-07-16
With nectar and honey pouch Although I didn't bring a honey jar But there is a honey pouch in the belly of the bee Is specially used to hold nectar
view detail
Quality inspection (3)qh3
01

Neutral salt spray test

2018-07-16
With nectar and honey pouch Although I didn't bring a honey jar But there is a honey pouch in the belly of the bee Is specially used to hold nectar
view detail
Quality inspection (4)qmd
01

Bearing Capacity test

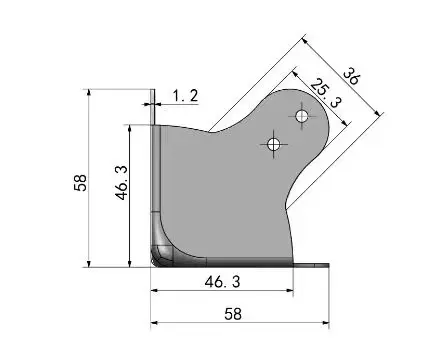

Introducing the Metal Box Corner Protectors for Wooden Cases, also known as Corner Squares, Corners Protectors, Edge Guard Corner Brackets, and more. These large flat corners are meticulously crafted with precision, boasting dimensions of 58*58*58mm. Featuring 3 legs and 6 holes with a mounting hole diameter of 5mm, these corner protectors are designed to provide robust reinforcement and protection for wooden cases and boxes.

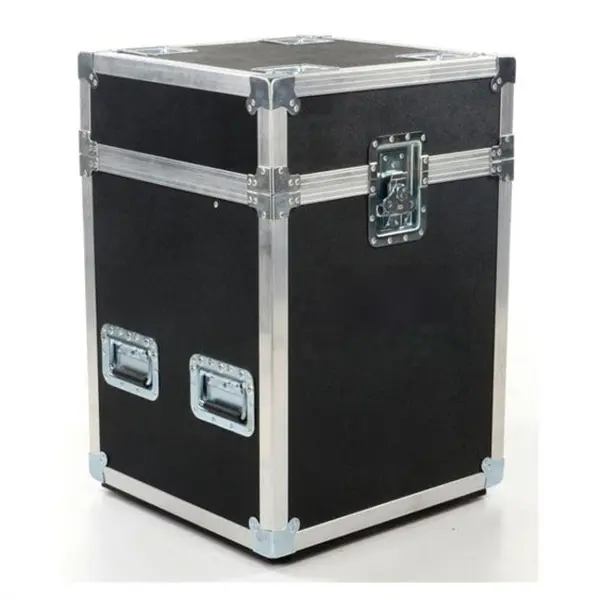

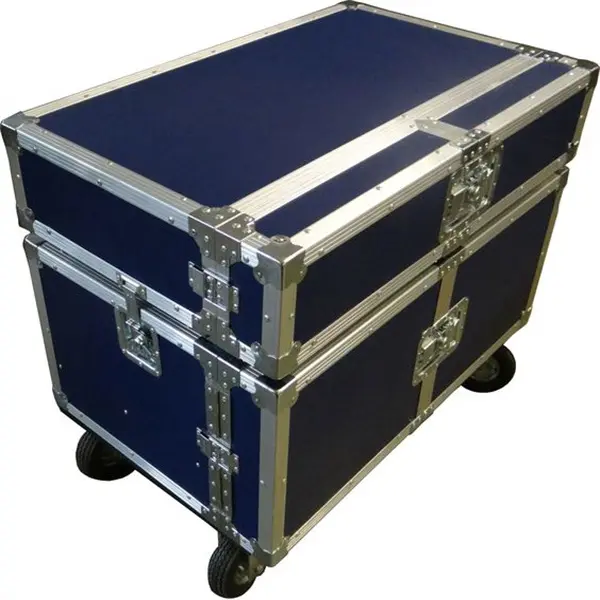

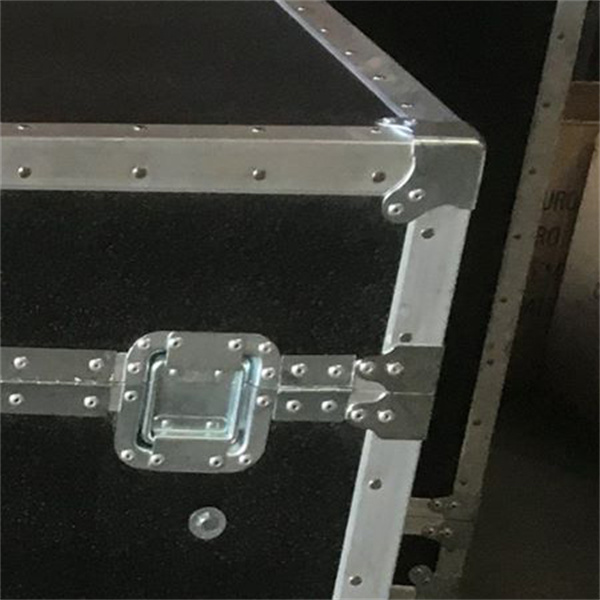

The versatility of these flat corners shines through in their functionality. Specifically engineered for installation on three sides of a box's exterior, they serve as a shield for the vulnerable edges of the box, effectively preventing scratches, dents, and other surface damages. By creating a protective barrier, these corner protectors not only safeguard the integrity of the box but also contribute to the safety of personnel by reducing the risk of accidental injuries caused by sharp edges.

What sets these Metal Box Corner Protectors apart is their innovative design featuring 6 mounting holes, offering an additional 3 holes compared to standard corner protectors. This unique configuration enhances the stability and security of the corner brackets, ensuring a more secure and reliable attachment to the box. With a focus on durability and functionality, these corner protectors are engineered to provide long-lasting protection and support for various wooden cases and boxes.

Furthermore, customers have the option to choose between two premium material selections: iron and stainless steel. Both materials are known for their strength, resilience, and corrosion resistance, making them ideal choices for applications requiring reliable protection. To further cater to individual preferences, a range of surface treatment options is available, including electroplating, painting, and polishing. This customization allows users to tailor the appearance and performance of the corner protectors to suit their specific needs and aesthetic preferences, ensuring a perfect blend of functionality and style.
